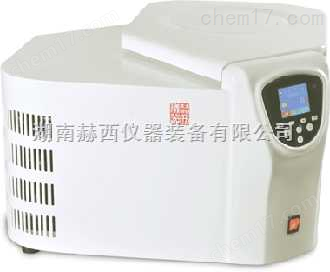

3H12RI 3H12RI智能高速冷凍離心機
具體成交價以合同協議為準
- 公司名稱 湖南赫西儀器裝備有限公司
- 品牌
- 型號 3H12RI
- 產地 長沙市望城坡湘儀路007棟101房
- 廠商性質 生產廠家
- 更新時間 2017/9/4 19:46:08
- 訪問次數 379
聯系我們時請說明是化工儀器網上看到的信息，謝謝!
臺式智能高速冷凍離心機、高速冷凍離心機、超大容量冷凍離心機、智能配平儀、大容量冷凍離心機、臺式高速離心機、普通離心機、石油離心機、丹佛天平、島津天平、水份測定儀、酸度計
3H12RI智能高速冷凍離心機是*的智能儀器設備，是廣泛應用于生物化學、醫療衛生、食品安全、生命科學、農林科學、牧業科學、血庫、血站、生物制品、藥物制品等領域?qū)悠愤M(jìn)行分離沉淀和濃縮制備的理想設備，是勵志于替代進口儀器并大量出口的*產品。
3H12RI inligent high speed refrigerated centrifuge is an advanced facility widely applied in biochemistry, health and medicine, food safety, life science, agriculture science, grassland farming science, blood bank, blood station, biological product, pharmacy product, to make sample separation, precipitation and concentration, and it is the high-tech product aiming at replacing import facility and becoming export.
★★特性★★
1.采用大力矩?zé)o刷變頻電機，控制采用Microchip公司的dsPIC30F系列單片機控制，電機驅動采用FAIRCHILD公司的FSBB30CH系列驅動模塊，保證了電路的高可靠性。
2.配以海量NandFlash內存，保證了儀器有較好的人機界面，能存儲多組用戶試驗數據，操作提示圖文并茂，使用戶操作更加簡單易懂。
3.集成USB接口電路，能滿足用戶提出的特殊要求，使用戶升級方便實惠。
4.整機設計符合人機工程學，流線型設計，全鋼結構，不銹鋼離心腔，更加安全美觀實用。
5.設有超速、超溫、不平衡等多種保護措施，特殊組合減震裝置，使電機平穩運行。設有三層鋼套保護、運行安全可靠、確保人身設備安全。
6.采用了進口環保無氟制冷壓縮機組和控制閥，制冷速度快，效率高，溫控精度高，噪音小，穩定可靠。轉子在靜止?fàn)顟B(tài)時實現待機冷卻功能。
7.TFT真彩大屏幕觸控液晶顯示，智能化控制、簡單方便地操作、觸摸面板，同時顯示設定參數和運行參數。
8.設有離心力顯示鍵。點動功能，短暫離心。
9.采用*機電一體化電機門鎖。
10.可提供100種以上工作模式選擇，可自由編程、調用。
11.10檔加速/減速速率控制。
12.zui高轉速：12000r/min，zui大離心力：12300×g。
**Features**:
*With brushless frequency motor in great torque, dsPIC30F series singlechip by Microchip company plays the controlling, while FSBB30CH series driving module by FAIRCHILD company plays the driving, ensuring the high reliability of circuit.
*Equipped with great capacity internal memory of NandFlash, there is an excellent human-computer interface, saving groups of experiment data, with vivid pictures and words, making user easily understand.
*The integrated USB interface circuit can meet the special requirements of users, making the upgrading convenient and cheap.
*The design is in line with ergonomics, with stream line sculpt, all-steel structure and stainless steel centrifuge chamber, being safe, aesthetic and practical.
*There are various protective measures of overspeed overheat and imbalance, special shock-mitigating device, making it work steadily. Three-layer steel jacket could ensure the safety of the user and machine.
*Equipped with import environmental compressors fluorine free and control valve, the machine is steady and reliable, with high refrigeration speed, high effectiveness, high temperature control precision, and less noise. Rotor could realize cooling function in stationary stage.
*TFT true color large screen of liquid-crystal display can show the set parameter and operation
parameter at the same time, with inligent control, convenient operation, and touch panel.
*There is a dedicated key of centrifugal force. With jog function and transient centrifugation.
*Motor gate lock with mute mechanical & electrical integration.
*Providing more than 100 kinds of operating modes, you are free to programme and apply.
*10 levels for speedup/speeddown control.
*Maximum rotate speed: 12000r/min, Maximum centrifugal force:12300（xg）.
★★技術參數★★
Technical parameters
| 型 號 Model | 3H12RI |
| zui大容量 Maximum capacity | 4×100ml水平轉子 Swing rotor |
| zui高轉速（r/min） Maximum rotate speed | 12000 |
| zui大離心力（×g） Maximum centrifugal force | 12300 |
| 標配轉子 Rotor in standard configuration | 12×1.5/2.0 ml（鈦合金） Titanium |
| 轉速精度 Rotate speed precision | ±50r/min |
| 制冷系統 Refrigeration system | 進口無氟制冷壓縮機組和控制閥 Import compressors fluorine free and control valve |
| 溫控范圍 Control temperature range | －20℃～40℃ |
| 溫控精度 Temperature control precision | ±1℃ |
| 定時范圍 Time range | 0-99h59min |
| 噪 音 Noise | ≤65dB |
| 電 源 Power | AV220V 50Hz |
| 重 量 Weight | 75kg |
| 外形尺寸（長×寬×高） Dimension（LxH） | 710×630×350mm |
★★轉子配置★★**Rotor configuration**
| 產品名稱 Product Name | 容量 Capacity | 3H12RI | |
| 轉速 Rotate speed | 離心力 Centrifugal force | ||
| 角轉子 Angle Rotor | 12×1.5/2.0ml | 12000 | 10000 |
| 10×5ml | 12000 | 10000 | |
| 24×1.5/2.0ml | 11500 | 12300 | |
| 12×10ml/5ml | 11000 | 11600 | |
| 6×50ml | 10000 | 9600 | |
| 4×100ml | 8000 | 6700 | |
| 水平轉子 Swing Rotor | 4×50ml | 4000 | 2150 |
| 4×10ml | 6000 | 3200 | |
