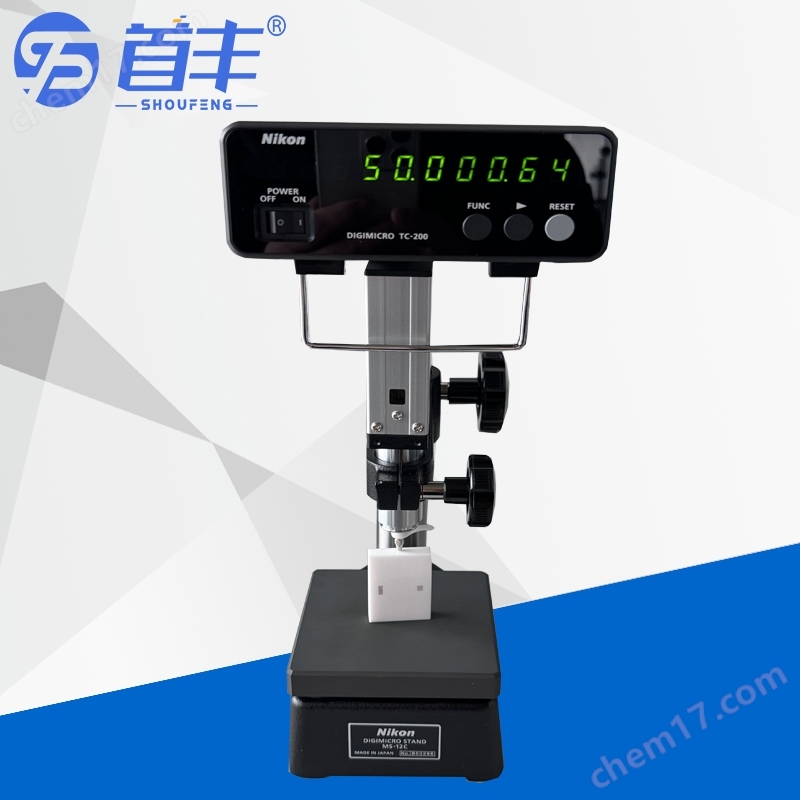

MF-1001 尼康Nikon高度計MFC-200/MF-501/MS-41G
| 參考價 | ￥ 36500 |
| 訂貨量 | ≥1套 |
- 公司名稱 常州首豐儀器科技有限公司
- 品牌 Nikon/日本尼康
- 型號 MF-1001
- 產地 日本
- 廠商性質 經銷商
- 更新時間 2025/7/2 9:13:13
- 訪問次數 56
聯系方式：魯先生13914342805 查看聯系方式
聯系我們時請說明是化工儀器網上看到的信息，謝謝!
| 產地類別 | 進口 |
|---|
尼康Nikon高度計MFC-200/MF-501/MS-41G
高精度保證 讀數從1µm到0.01µm
3種數字測量頭 MF-1001：測量范圍0?100mm
MF-501：測量范圍0?50mm
MH-15M：測量范圍0?15mm
2種計數器:
1、MFC-200：讀數值0.1µm
2、TC-200：讀數值0.01µm
數顯高度計
有3種測量頭可供選擇。還有各種計數器、底座、測頭等，可以滿足各種測量需求。
MF-1001數顯高度計測量頭
MF-1001＋MFC-200 計數器
測量范圍：0～100mm
讀數值：0.1µm
精度（20℃）：3µm
MF-1001＋TC-200 計數器
測量范圍：0～100mm
讀數值：0.01µm
精度（20℃）：3µm
Nikon Corporation (Nikon) is pleased to announce a renewed lineup of two counters and five measurement stands for the Digital Length Measuring System “DIGIMICRO” that consists of three units, DIGIMICRO head, Counter and Measurement stand.
“DIGIMICRO” is a product that has a built-in high-precision optical linear encoder and detects and measures digital signals according to the movement of the linear scale. “DIGIMICRO” is widely used in processes such as measurement and quality inspection for small precision equipment and electronic components at manufacturing sites. The DIGIMICRO head measures thickness of parts and differences in levels, and then the counter displays the measuring data.
Nikon is launching the “MFC-200” and “TC-200” counters with even greater compatibility for personal computers to meet the needs of collecting and analyzing measured data on personal computers.
The MFC-200 is a head-mounted type uniaxial counter with a minimum reading of 0.1 micrometer.
The TC-200 is an external type high-precision counter with a minimum reading of 0.01 micrometer.
Both the MFC-200 and TC-200 have been newly designed to be compatible with measurement data input/output equipment (sold separately)* that facilitates output of measuring data to personal computers, which will in turn contribute to improved business flow at manufacturing sites.
Furthermore, this launch includes a lineup of five measurement stands, which means that users can now choose the stand that suits the size and height of objects to be measured. Indeed, the design has been revamped to give the stands in the lineup a unified sleek and stylish look.
技術參數
| 主要單元 + 計數器 | MF-1001 + MFC-200 | MF-1001 + TC-200 | MF-501 + MFC-200 | MF-501 + TC-200 | MH-15M + TC-200 |
| 測量范圍 | 0-100 mm | 0-50 mm | 0-15 mm | ||
| 小讀數 | 0.1 µm; 可切換到 0.5 µm or 1 µm | 0.01 µm; c可切換到 0.05 µm, 0.1 µm, 1 µm, or 5 µm | 0.1 µm;可切換到 0.5 µm or 1 µm | 切換到 0.5 µm 或 1 µm 0.0 1 µm； 可切換為 0.05 µm、0.1 µm、1 µm 或 5 µm/th>； | |
| 精度 (20 °C) | 3 µm | 1 µm | 0.7 µm | ||
| 反應速度 | 500 mm/sec. or less | 100 mm/sec. or less | |||
| 測力 | 向下 1.225 至 1.813 N（可變至約 0.441 N），橫向 0.637 至 1.225 N | 向下 1.127 至 1.617 N（可變至約 0.294 N），橫向 0.637 至 1.225 N | 向上0.245 N，向下0.637 N，橫向0.441 N'帶提升釋放 | ||
| 操作溫度 | 0 to +40 °C | ||||
| 重量（主機） | 大約 480 g | 大約 310 g | 大約 220 g | ||
尼康Nikon高度計MFC-200/MF-501/MS-41G
Main Specifications of Counters
| Model | MFC-200 | TC-200 |
|---|---|---|
| Display | 7-segment LED (green), 8 digits (including minus [-] sign), zero blanking, floating minus sign | 7-segment LED (green), 10 digits (including minus [-] sign), zero blanking, floating minus sign |
| Minimum reading | 0.1 µm (Can be switched to 0.5 µm or 1 µm) | 0.01 µm (Can be switched to 0.05 µm, 0.1 µm, 0.5 µm, 1 µm or 5 µm) |
| Ambient temperature | Operating temperature: 0°C to 40°C Storage temperature: -20°C to 60°C | Operating temperature: 0°C to 40°C Storage temperature: -20°C to 60°C |
| Compatible DIGIMICRO | MF-1001 and MF-501 | MF-1001, MF-501 and MH-15M |
| External dimensions | 80 (W) x 84.3 (H) x 25.5 (D) mm [D is 32.2 mm with connectors] | 150.2 (W) x 67.2 (H) x 176(D) mm |
| Weight | Approx. 95 g | Approx. 1 kg |
